40kWh Sistema di Batterie LiFePO4 Alta Tensione HV Deye IP20

SKU: 12296 | VT:
12296-2
11862-2
11863

The PV Set includes:

  • 8 pcs - 5.12kWh LiFePO4 Battery SKU:11862;
  • 1 pcs – High Voltage Battery Cluster Control Box SKU:11863;
  • 1 pcs - Rack for Deye Set SKU:12192;
The V-TAC Rack Kit SKU 12296 with high voltage storage batteries is an advanced solution designed for industrial and commercial applications. Composed of 8 LiFePO4 battery modules of 5.12kWh (BOS-G5.1 SKU 11862), for a total storage capacity of 40.96kWh , this kit guarantees maximum safety, reliability and flexibility in energy storage.

The batteries, connected in series , are managed by a HV Box BMS (included, SKU 11863 ), which optimizes system control, ensuring high performance and continuous protection against overloads and overdischarges.

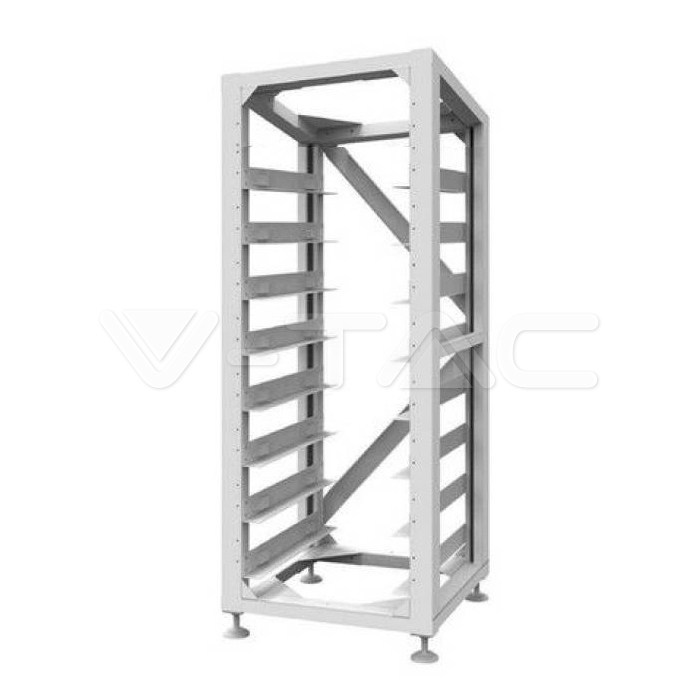

The rack configuration allows for quick and easy installation, making the system ideal for limited spaces. The rack cabinet SKU 12192 offers IP20 protection, ideal for indoor use.

LiFePO4 batteries deliver reliable and sustainable performance, improving the efficiency and range of advanced energy storage systems and high-voltage photovoltaic projects.
Downloads
CEI 0-21
Manual
CEI 0-16
Expansion and Use Statement
Warranty Conditions
IEC 62619
Technical Specifications
EMC License
Declaration of Conformity
Specifiche tecniche
Informazione generale
Dati elettrici
Corrente
  • Charge/Discharge Current: Recommend 50A;
  • Charge/Discharge Current: Nominal 100A;
  • Charge/Discharge Current: Recommend 50A;
  • Standard Discharge Current: Peak Discharge 125A;
Potenza
40.96kWh (5.12 kWh x 8)
Tensione
  • System Nominal Voltage: 409.6V;
  • System Operating Voltage: 332.8-467. 2V;
Dettagli corpo
Montaggio
Armadio Rack
Funzionalità
Capacità della batteria
100Ah LFP (LiFePO4)
Condizioni di lavoro
Charge: 0~55/Discharge: -20~55
IP Protezione
IP20
Chimica delle celle
LiFePO4
Dimensione
Dimensioni
530x602x1599 mm
Dati del prodotto
Numero d'ordine
12296
Peso
408 kg
Aggiuntivo
Garanzia
10 anni
Marchio
Deye
